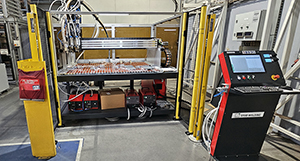

CNC stud welding machine T 1308025 (working area: 1300 x 800 x 250 mm) with two welding heads and one milling unit

  • working area: 1300 x 800 x 250 mm
  • welded steel machine frame
  • twelve ceramic stop pins on the X- and Y-zero line
  • operating software PRO-STUD (incl. DXF data converter)
  • operation of the software via monitor with keyboard and mouse (control PC with Windows 10)
  • two automatic stud welding heads KHA-200F with integrated travel measuring system
  • fluid spraying device on each welding head
  • two stud welding units PRO-C 1500 with weding parameter memory
  • two automatic stud feeders VBZ
  • two pneumatic single stud feeders (manual stud insertion) with stud switch
  • milling unit with exhaust device.
  • twelve pneumatic ground clamps, aperture angle 90°
  • light curtain for safeguarding the working area

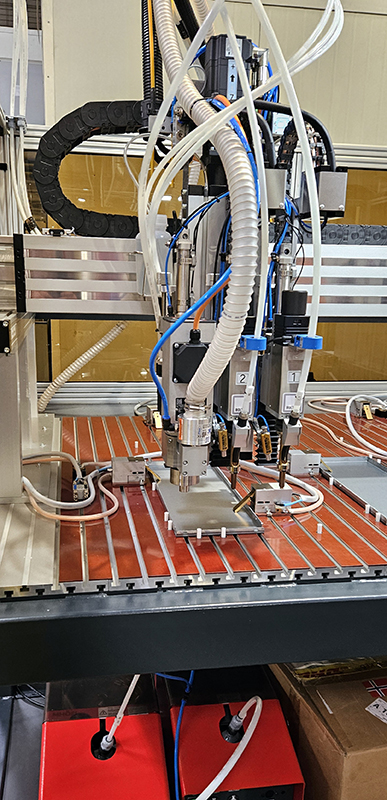

automatic stud welding heads KHA-200F with integrated travel measuring system

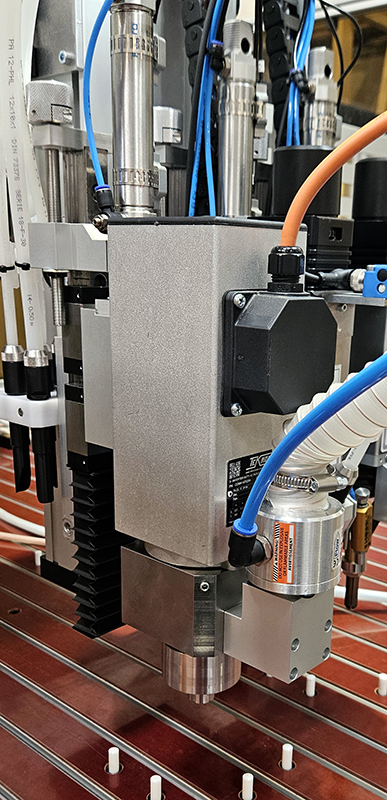

milling unit with exhaust device

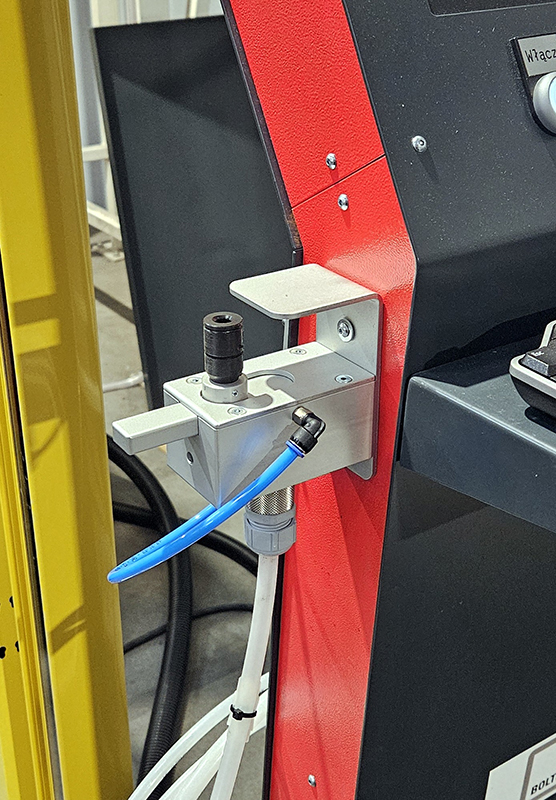

pneumatic single stud feeder (manual stud insertion) with stud switch

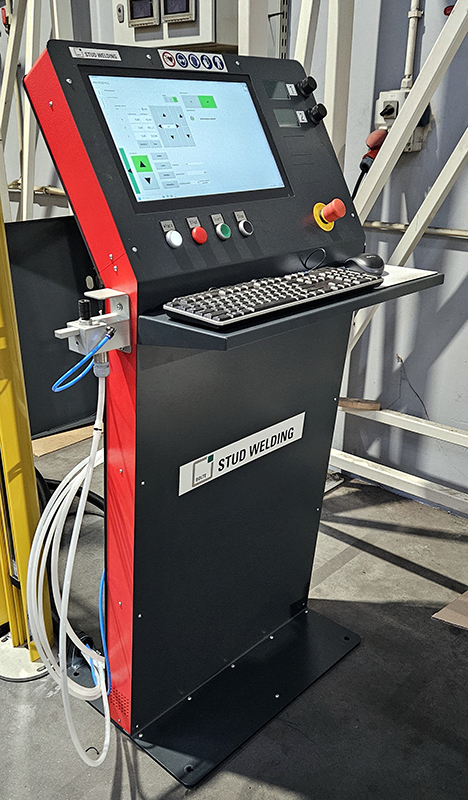

operating terminal with operating software PRO-STUD

ready welded workpieces
