Automatic stud welding head KKA-200F with both-sided swivel device 45° and angle scale on handling arm Powerflex
Automatic stud welding head KKA-200F with both-sided swivel device 45° and angle scale on handling arm Powerflex 1800 with stud welding unit LBS 90 and automatic stud feeder VBZ
The swivel device ensures the exact vertical welding of welding studs on large-sized components with diagonal surfaces. The processing time for each workpiece is reduced by 35% through this configuration.
On even surfaces positioning is done by a jig.

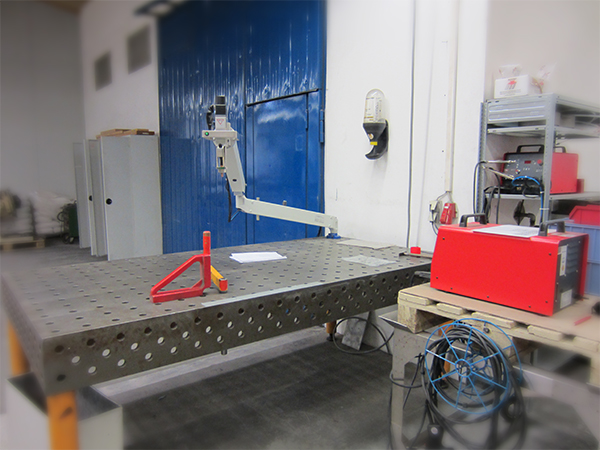

Side view: automatic stud welding head KKA-200F with both-sided swivel device 45° and angle scale on handling arm Powerflex 1800 with stud welding unit LBS 90 and automatic stud feeder VBZ

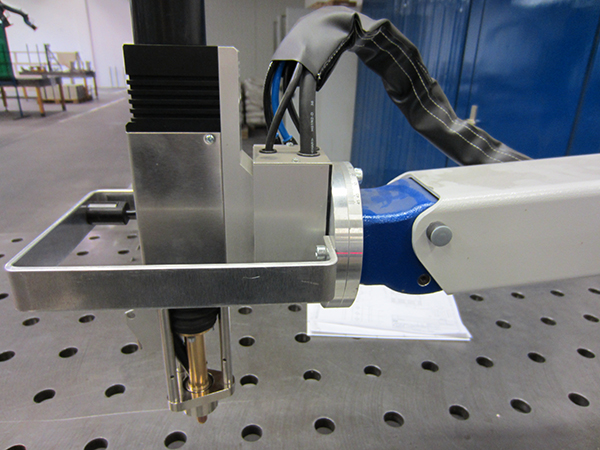

Detailed view: automatic stud welding head KKA-200F with both-sided swivel device 45° and angle scale on handling arm Powerflex 1800 with stud welding unit LBS 90

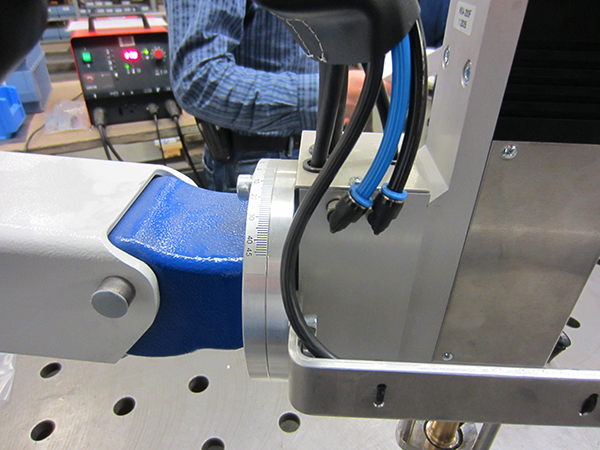

Detailed view: automatic stud welding head KKA-200F with both-sided swivel device 45°

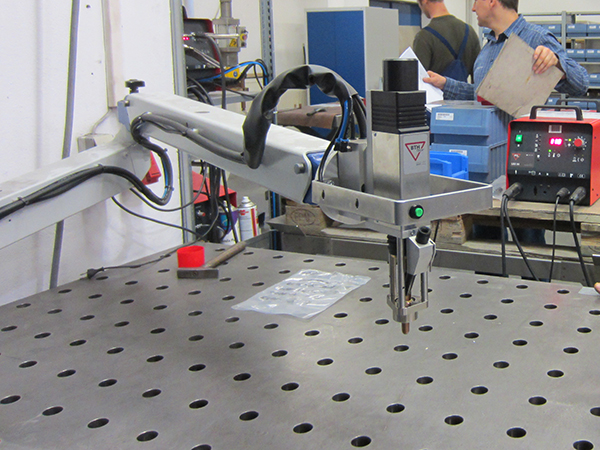

Detailed view: automatic stud welding head KKA-200F with both-sided swivel device 45°
